Call Recording Directly From T1/E1








System is based on adapters E1R.

Each adapter is used for recording one ISDN E1 channel - 30 phone lines. Adapter`s output interface is Ethernet and/or USB.

Recording software supports up to 4 E1R cards (120 phone lines).

Recording software: E1Rec and E1Dec (Windows > 7, x86,x64) - by request

Playback software: Calls Player (Windows > XP, x86,x64) - demo available on download page

Call manage software: Calls Explorer (Windows > XP, x86,x64) - demo available on download page

Call Recording up to 128 analog channels

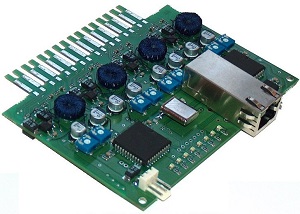

System is based on 8-channel adapters AD8X, which are placed directly to disconnected plinths KRONE LSA+.

Adapter`s output interface is Ethernet 10/100 MBits.

Adapters could be installed to the user's own cable system or supplied with a special case. Recording software supports up to 16 AD8X cards (128 analog phone lines).

New features: detection of incoming caller numbers (CLIP FSK or DTMF) and outgoing numbers (DTMF).

Recording software: IpRecorder (Windows > 7, x86,x64) - by request

Playback software: Calls Player (Windows > XP, x86,x64) - demo available on download page

Call manage software: Calls Explorer (Windows > XP, x86,x64) - demo available on download page

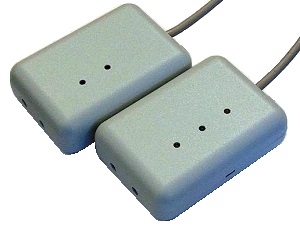

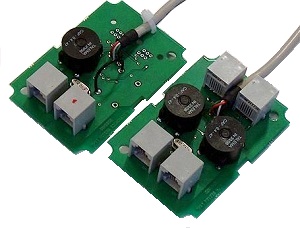

Call Recording 1..4 analog channels







The device is intended for record from one to two analogue telephone channels.

Has information light-emitting LEDS: readiness and record. The computer interface - USB. A power supply is carried out also on tyre USB.

The data recording is carried out by ED Recorder, which has set of options depending on operation requirements (quality, volume , etc.) The beginning of record on signal level (VOX) is provided also.

A format of recorded files is MP3. Possibility of detecting outgoing numbers (DTMF) and incoming numbers (CLIP). Possibility of the program installation as standard Windows application, and system service.

For listening of the written down files it is possible to use any mp3 a player or to use free ED Player.

For additional two channels recording special recorderA was developed, so< it is possible to record up to four telephone lines.

Recording software: EDRecorder (Windows > 7, x86,x64) - freeware available on download page

Playback software: EdPlayer (Windows > XP, x86,x64) - freeware available on download page

Call manage software: EdPlayer (Windows > XP, x86,x64) - freeware available on download page

VoIP calls recording






Software allows to record and register calls from IP phones as well as softphones (for example: Callcentric) worked on SIP2.0 protocol.

Besides call registering, software provides to user abilities to listen records and make calls search with different options.

Supported audio codecs: PCM A-Law and M-Law; G729 (in test mode now).

Software is working on servers based on Microsoft Windows (32 and 64 bits) or on any user offices PC through passive hub (see picture).

Recording software: SipRecorder (Windows > 7, x86,x64) - by request

Playback software: - any media player

Call manage software: - no
