Data acquisition

DAM32 – 32-Channel Data Acquisition Module

The module can be fabricated with following measurement inputs:

  • AC current (with external current transformers)
  • DC voltage 0 … 10 VDC
  • Control of states on alarm and fire loops, and relay contacts.

Number of differential analog inputs for AC current measurement — up to 16:

  • Input resistance 10 Ohm
  • Input current range 0 … 100 mА
  • Accuracy < 1%

Number of single ended inputs for DC voltage measurement — up to 32

  • Input resistance
    • 0 – 10 V channel — 100 kOhm
    • Control of states channel — 2.2 kOhm
  • Recommended test voltage of Control of states channel 12 ...24 VDC
  • Accuracy < 1%

Measurement period — 1 s

Communication port - Modbus RTU, RS485 galvanically isolated (2,5 kV RMS up to 1 min.)
Baudrate 115200, 8, n, 1(2), terminal resistor 120 Ohm
Address range from 1 to 127

Supply voltage 5 … 28 VDC
Typical supply current 15 mA @ 12 VDC

Prepared for additional interface module mounting Ethernet (PoE) / USB/ RS485/ RS232

Data acquisition and control system

Interface length up to 1,2 km
63 modules on one line
proprietary protocol
4 … 30 VDC supply, < 50 uA supply current

Target applications: security, access control, fire alarm systems

Input addressable module

One analog input 0 … 20 mA
Accuracy < 2 % @ 1 … 20 mA
Supply current < 50 uA
Operating temperature -30 … + 70 °C

Input-output addressable module

All functions of Input Module plus
One bistable relay with zero standby current
Relay Contacts 30V 1 AM
Supply current < 50 uA (incl. Relay control)
Black or Grey plastic box

Temperature meter

4-channel Thermometer for temperature control
Intended for connection of 2 NXP KTY81-210 sensors
Temperature measurement range -5 … 150 °C
Accuracy ~ 1 °C
Supply current < 0.9 mA x number of sensors connected
Black or Grey plastic box

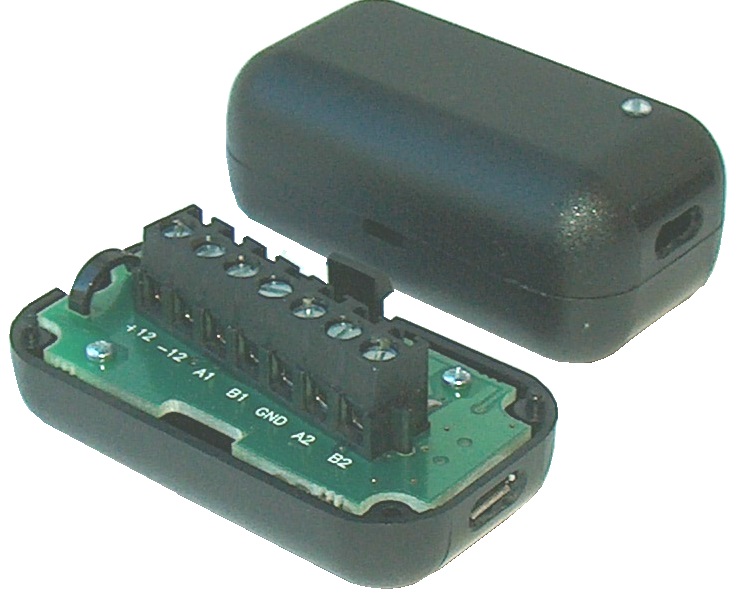

USBR2 Controller

Controller for up to 64 modules
USB interface for computer
Modbus


Flow-meters calibration system

Click here details..

Data acquisition and control system has been designed for Meters Producing Company ASWEGA (Estonia) for flowmeters calibration rig.

Specification:

Data acquisition:
  • 32 analog current measurement inputs (0 - 5 mA, 0 - 20 mA, 4 - 20 mA);
  • 40 opto-isolated digital inputs;
  • 40 opto-isolated pulse/frequency inputs;
  • 20 RS232/RS485 serial ports;
  • 4 temperature measurement modules.
Control:
  • 40 relay outputs;
  • Power supply for all control equipment and devices under test.
Dimensions:
  • Height 30 cm in 60 x 60 cm 19" Rack (without control computer).

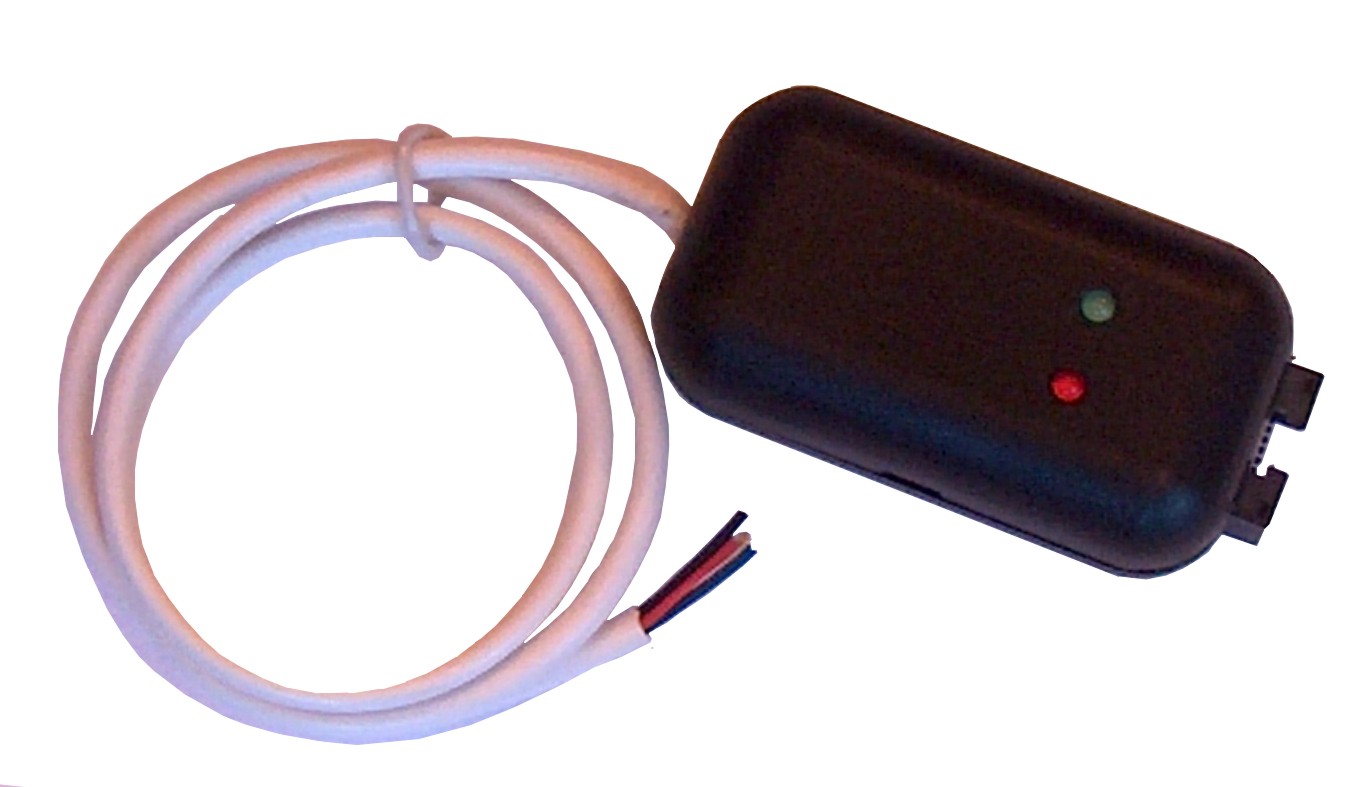

Data logger

Data logger is special device for data collection from object under test through RS232 or RS484 interface and storing into the build-in 4 Mbit memory. After that, data could be downloaded to computer for analysis.


Term 2K / Term18 (portable)

This simple free utility is used for monitoring serial ports, program could send and receive data on high bidrate. It has ability to define delay between sending bytes, has request-reply mode.

Term2K has build-on HEX editor with search and print functions. Also software supports PCI-RS485 cards. And much more.

.

It is no need to install the software, just unzip and run. Requirements: MS Windows and mfc42.dll, mscvrt.dll libraries.
